Digging Deeper into Inductive Reactance (XL)
2. How Inductors Fight Back
Let's zoom in on XL. Inductive reactance is the opposition an inductor presents to the flow of alternating current. The formula is pretty straightforward: XL = 2 f L, where f is the frequency of the AC in Hertz, and L is the inductance in Henries. You can see that as either frequency or inductance increases, XL also increases. This is because a stronger magnetic field is created by the inductor.
Think of it like this: imagine pushing a swing. If you push it slowly (low frequency), it's easy. But if you try to push it back and forth very quickly (high frequency), it becomes much harder. The swing resists your rapid changes in direction, just like an inductor resists rapid changes in current.
A significant aspect of XL is that it doesn't dissipate energy like a resistor does. Instead, it stores energy in a magnetic field and then releases it back into the circuit. This is crucial for creating tuned circuits, like those found in radio receivers, that can selectively amplify certain frequencies while blocking others.
Inductors are used in a myriad of applications. Everything from power supplies to filters to motors rely on them. Understanding XL is important to knowing how these devices work.
Exploring Capacitive Reactance (XC)
3. The Capacitor's Charge-Up Challenge

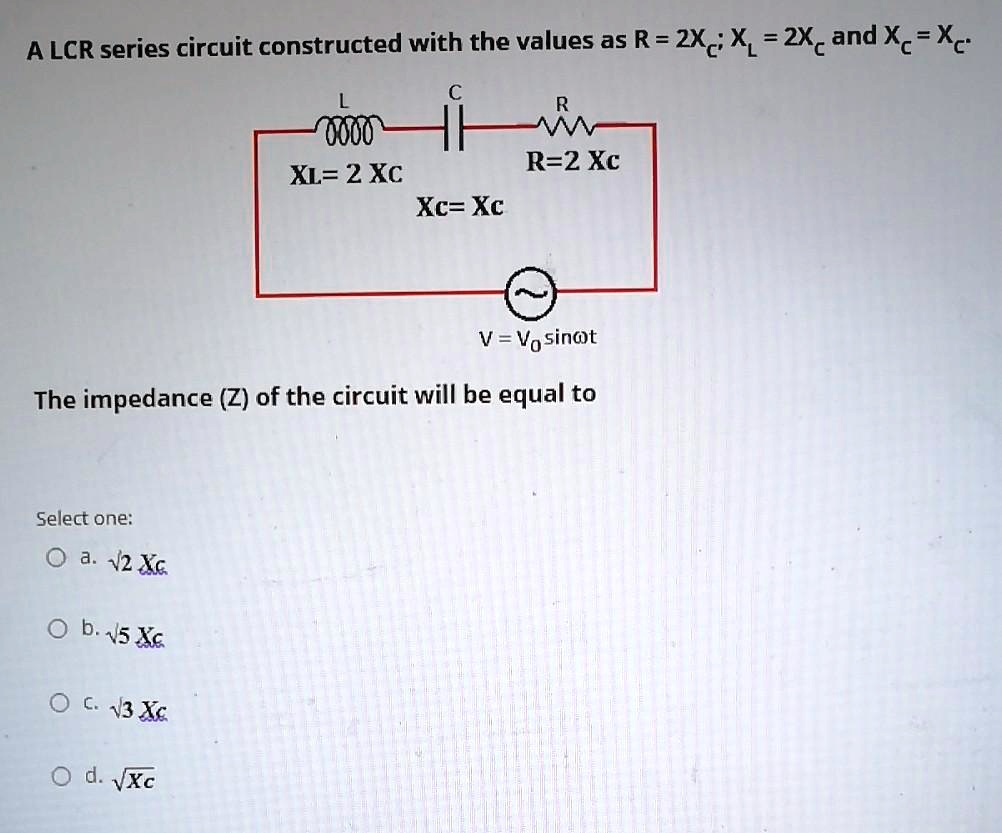

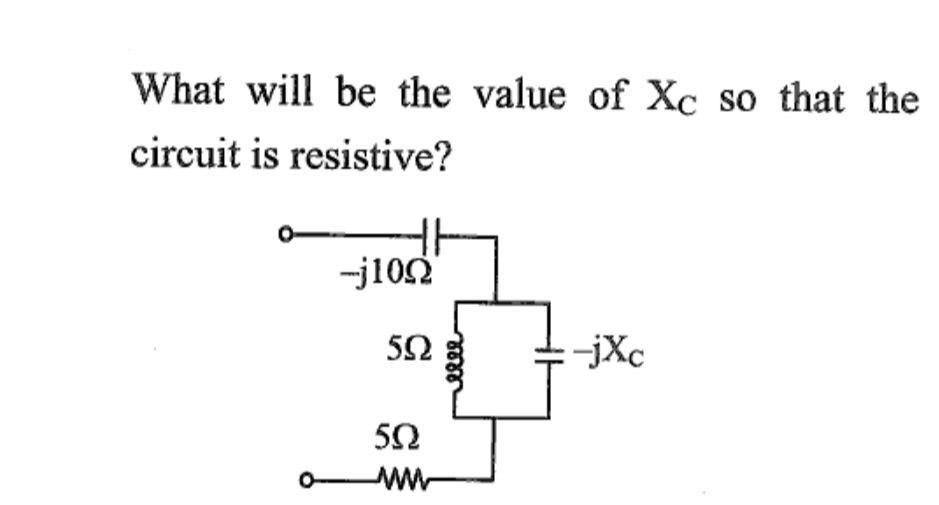

Now, let's shine a light on XC. Capacitive reactance is the opposition a capacitor presents to the flow of alternating current. Its formula is XC = 1 / (2 f C), where f is the frequency of the AC in Hertz, and C is the capacitance in Farads. Notice the inverse relationship: as frequency or capacitance increases, XC decreases. This is because at higher frequencies, the capacitor has less time to fully charge and discharge, so it presents less of an obstacle to the current flow.
Picture a water balloon with a tiny nozzle. If you try to fill it with water slowly (low frequency), it will eventually fill up and block the water flow. But if you keep changing the water flow on and off very quickly (high frequency), the balloon never gets a chance to completely fill up, and the water keeps flowing through with relative ease. This is what happens in a capacitor, but with electric charge instead of water.
Like XL, XC doesn't dissipate energy. A capacitor stores energy in the form of an electric field between its plates and then releases it back into the circuit. Capacitors are used for filtering, energy storage, and smoothing voltage ripples, among other things.
Because XC dissipates very little, if any, energy, it is often used in power factor correction circuits. These circuits help to reduce the amount of energy that is wasted in a system. For example, electric motors are very inductive, and therefore they can produce a large amount of reactive power. XC can be added to these motors to offset this inductive power.
